Epson LW-Z5010PX Printer

$760.00
SKU
LW-Z5010PX
Overview

Printer Kit Includes:

LW-Z5010PX Printer, 250VTBWPX Tape Cartridge, USB Cable, AC Adapter, Bulk Supply Stand, Lithium-Ion Battery, Label Editor Software Download, and Quick Start Guide

Printer Features:

• Color LCD touch screen display

• Easy to use QWERTY keyboard

• Prints on supplies up to 2" (50mm) wide

• LabelWorks PX cartridge compatible

• Bulk supply / high-volume printing

• Replaceable half-cut and full-cut components

• Free Label Editor software and mobile apps

• USB and network (WiFi wireless and LAN) connection options

LIFETIME WARRANTY

Labeling Versatility to the Power of Z

Only with Epson's Z-Series of industrial label printers do you get the versatility to print labels using any LabelWorks PX label media cartridge and value roll from 1/6" (4mm) to 2" (50mm), including:

  • Standard Polyester (PET)
  • Heat Shrink Tube
  • Magnetic
  • Self-Laminating Vinyl
  • Extra-Flexible Vinyl
  • Strong Adhesive
  • Silver Matte
  • Fluorescent
  • Die-Cut
  • Removable Adhesive
  • Extra-Long Bulk Value Rolls

With Epson's Z-Series flagship, the LW-Z5010PX, you can design and print your labels using the full-color touchscreen interface and QWERTY keyboard or Epson's Label Editor software and apps (unlimited downloads and licenses included).

From the smallest heat shrink wire marker to large safety or directional labels and every label in between, you can use one printer to fulfill all of your labeling requirements - the Epson LabelWorks LW-Z5010PX.

With unmatched versatility, the LW-Z5010PX is the only industrial label printer you need. With Epson LabelWorks' no-questions-asked LIFETIME WARRANTY, the LW-Z5010PX is the last printer you will ever need to buy.

Software Compatible

Use Epson's intuitive mobile apps and Label Editor software (unlimited downloads and licenses included).  Print labels featuring icons, symbols, bar codes, QR codes, logos, or sequential alphanumeric information; even upload label data from spreadsheets!

computer-software-compatible-label-editor

Easy "Snap-In" Loading

Change out supplies in a snap with easy top-loading. All Epson LabelWorks PX label cartridges include pre-matched ribbon and label media, eliminating delicate ribbon rolls and making loading a breeze.

label-printer-easy-cartridge-loading

Color Touchscreen

See your labels come together in color while you're designing them! Plus, the sensitive touchscreen lets you make adjustments as you go!

When you're finished, fold the touchscreen over the keyboard creating a self-contained protective case for both.

color-touch-screen-display

Optimal Connectivity

Connect to the LW-Z5010PX using a USB cable directly to your computer, or choose between Wireless and Wired LAN for multiple users either with Label Editor software, or the Epson iLabel and Epson Datacom apps.

optimal-connectivity-options

Epson LabelWorks LW-Z5000PX & LW-Z5010PX

One Printer for Any Label? Get Zerious.

Epson's LW-Z5010PX gives you the versatility to print labels using any LabelWorks PX label media cartridge and value roll (from 1/6” (4mm) to 2” (50mm). From the smallest heat shrink wire marker to large safety or directional labels and every label in between, you can use one printer to fulfill all of your labeling requirements - the Epson LabelWorks LW-Z5010PX.

Epson's Z-Series High-Volume Bulk Label Printers

Compatible with all LabelWorks PX cartridges, these printers were made to lower the total cost of labeling by using Epson's new line of bulk roll supplies.

What's in the Box? The LW-Z5010PX - Epson's New 2" Label Printer

Join Melissa Coffman, Product & Training Specialist for Epson LabelWorks, as she unveils Epson's new LW-Z5010PX lower-cost, high-volume 2" bulk label printer.

Setting Up the Epson LW-Z5010 w/ Bulk Label Roll and Rewinder

See how easy it is to load, print, and rewind bulk label batches using the new Epson LW-Z5010PX high-volume, lower-cost industrial label printer.

Rewinding Bulk Labels to a Core

For those who need lots of labels to take to the job site, the Epson LW-Z5010PX (and LW-Z5000PX) makes life easy.

Head-to-Head: Brady BMP71 vs. Epson's LW-Z5010PX

Not all 2" industrial bulk label printers are equal. Choose wisely.

Replacing the Label Cutter Blades (LW-Z5000PX & LW-Z5010PX)

For those with the need to print large quantities of industrial labels, Epson offers the Z-series bulk label printers (LW-Z5000PX & LW-Z5010PX). The workhorses of the Epson LabelWorks line, the Z's are just getting started after printing 40,000 labels, but you may need to replace the cutting blades. No worries, it's easy-peasy.

Epson LabelWorks LW-Z5010PX Tutorial: Save & Retrieve Labels, Select Labels to Print in a Queue

The LW-Z5010PX is Epson LabelWorks' most versatile label printer. In this short tutorial, you'll learn how to create, save, and retrieve labels, and then select certain labels to print in a queue. Melissa Coffman, Product & Training Lead at Epson LabelWorks shows you how easy it is!

Epson's LW-Z5010PX Industrial Label Printer: Creating Serialized & Sequenced Heat Shrink Tube Labels

Printing a large run of serialized and sequenced wire marker labels on heat shrink tube is a breeze with Epson's LW-Z5010PX label printer. In this brief tutorial, Melissa Coffman, Product & Training Lead at Epson LabelWorks, walks you through this easy process step-by-step.

Epson's LW-Z5010PX: Advanced Serialization for Labeling Patch Panels, 66 Blocks, & Faceplates

In this short tutorial, you'll learn when and how to use the advanced serialization capabilities of the Epson LZ-Z5010PX for labeling patch panels, 66 blocks, and faceplates. Melissa Coffman, Product & Training Lead for Epson LabelWorks shows you how.

Creating Patch Panel Labels with Epson's LW-Z5010PX

Creating perfect patch panel labels is easy peasy using Epson's most versatile industrial label printer - the Epson LW-Z5010PX.

Need to Print a QR Code? Creating and PRinting QR Codes is Fast and Easy with Epson's LW-Z5010PX

Designing and printing QR codes is fast and easy when you use Epson's LW-Z5010PX industrial label printer from Epson LabelWorks. Use the fold-out QWERTY keyboard and full-color touchscreen and you'll be labeling in a jiffy.

Using the Line Swap Feature on the Epson LabelWorks LW-Z5010PX Industrial Label Printer

Need to create duplicate labels for two sides of the same cable? Sounds easy, but you'll need to print two separate labels - one needs to be reversed. It's easy to do in one step with Epson's line-swap feature on the LW-Z5010PX industrial label printer. Use custom printable heat shrink tube or self-laminating label material and you're good to go in a snap!

Pro Tip: How to Clear All Label Text Instantly Using the Epson LabelWorks LW-Z5010PX Label Printer

Need to delete an entire label at once? It's easy-peasy on the Epson LabelWorks LW-Z5010PX industrial label printer.

Adjusting Font Sizes: Epson LabelWorks LW-Z5010PX Industrial Label Printer (Part 1 of 2)

Take control of your font sizes to make picture-perfect custom labels using Epson LabelWorks' LW-Z5010PX industrial label maker. In this short video you'll learn how easy you can do it for labels upto 2-inches (50mm) wide. (Part 1 of 2)

Adjusting Font Sizes: Epson LabelWorks LW-Z5010PX Industrial Label Printer (Part 2 of 2)

Take control of your font sizes to make picture-perfect custom labels using Epson LabelWorks' LW-Z5010PX industrial label maker. In this short video you'll learn how easy you can do it for labels upto 2-inches (50mm) wide. (Part 2 of 2)

More Information
Manufacturer Epson
Brand LabelWorks PX
Specifications

Printing
             Technology: Thermal Transfer
             Tape Width: 4-50mm
             Resolution: 300 dpi
             Printer head width: 52.15 mm
             Max Print Speed: 50mm / sec with AC Adapter using select supplies
             Store and Print Images: Yes, up to 5
Print Settings
             Repeat Printing: Yes
             Auto Increment: Yes
             Number Serialization: Up to 4 alpha-numeric characters
             Label Trasfer from PC Sofware: Yes
             Store and Print Images: Yes
             Mirror Printing: Yes
             Mix Length: Yes
             Minimum Margins: 5mm lead, 1mm between labels
             Vertical Printing: Yes
             Cable Wrap: Yes
             Flag: Yes
             Patch Panel: Yes
             Punch Block: Yes
             Faceplate: Yes
             Block 66: Yes
             QR Code: Yes
             Barcodes: 8 types in printer firmware, 15 types with software
             Symbols: 924 industrial and professional symbols
             Length: Auto or custom
             # of Fonts: 1
             Frames: 74
             Table: 10

Hardware
             Cutter: Automatic with full-cut and half-cut function
             Replaceable Cutter: Yes - Half and Full
             LCD: 4.3” WQVGA, Full Color Touch Screen
             Internal Memory: Up to 100 files
Connectivity
             Interface: USB, WiFi Wireless LAN, Wired LAN
             Compatible Apps: Epson Label Editor, Epson iLabel and Epson Datacom for iOS 9.0 or later and Android 5.0 or later
             Software to be Downloaded: Epson Label Editor: Windows 7, 8, 8.1, 10, 11
Other Information
             AC Adapter: Yes
             Battery: Rechargeable Lithium-Ion Battery

Features
  • LIFETIME Warranty
  • On-board QWERTY keyboard for labeling in the field
  • High-quality 2” color touchscreen makes designing and previewing labels a snap
  • Prints high-volume label batches using 147’ (45 meter) bulk roll label supplies
  • Save up to 65% per label compared to competing printers and supplies
  • Lower cost per label compared to competing printers
  • Loads quickly with easy “drop-in” cassettes and cartridges
  • Prints labels from 1/6” to 2” wide (4mm – 50mm)
  • Large selection of label supplies – Compatible with all existing Epson LabelWorks PX cartridges (polyester, vinyl, heat shrink tube, printable magnet, self-laminating cable wraps, and more) plus new 2" cartridges and bulk roll supplies
  • Saves money with lower cost-per-label compared to competing options
  • Convenient half-cut feature cuts only the label – not the backing – to keep label batches together while making individual labels easy to peel and apply
  • Includes Epson’s Label Editor software and mobile app (free downloads, unlimited licenses)
  • Use as a stand-alone printer or a peripheral via Wi-Fi, LAN or USB
  • Compatible with Epson’s convenient bulk label rewinder (sold separately)
  • Energy-Star Certified
Hardware Features

Replaceable Half-Cut and Full-Cut Components

halfcut_fullcut

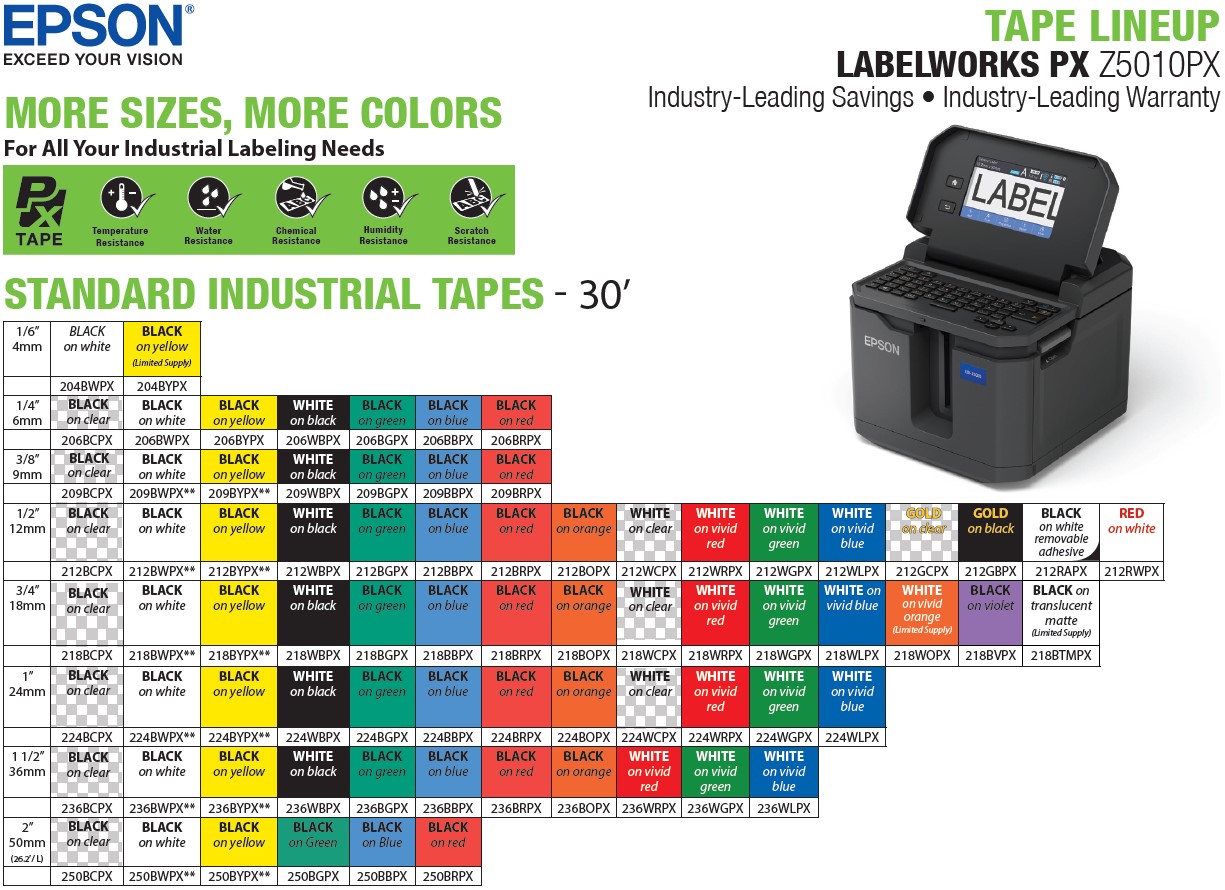

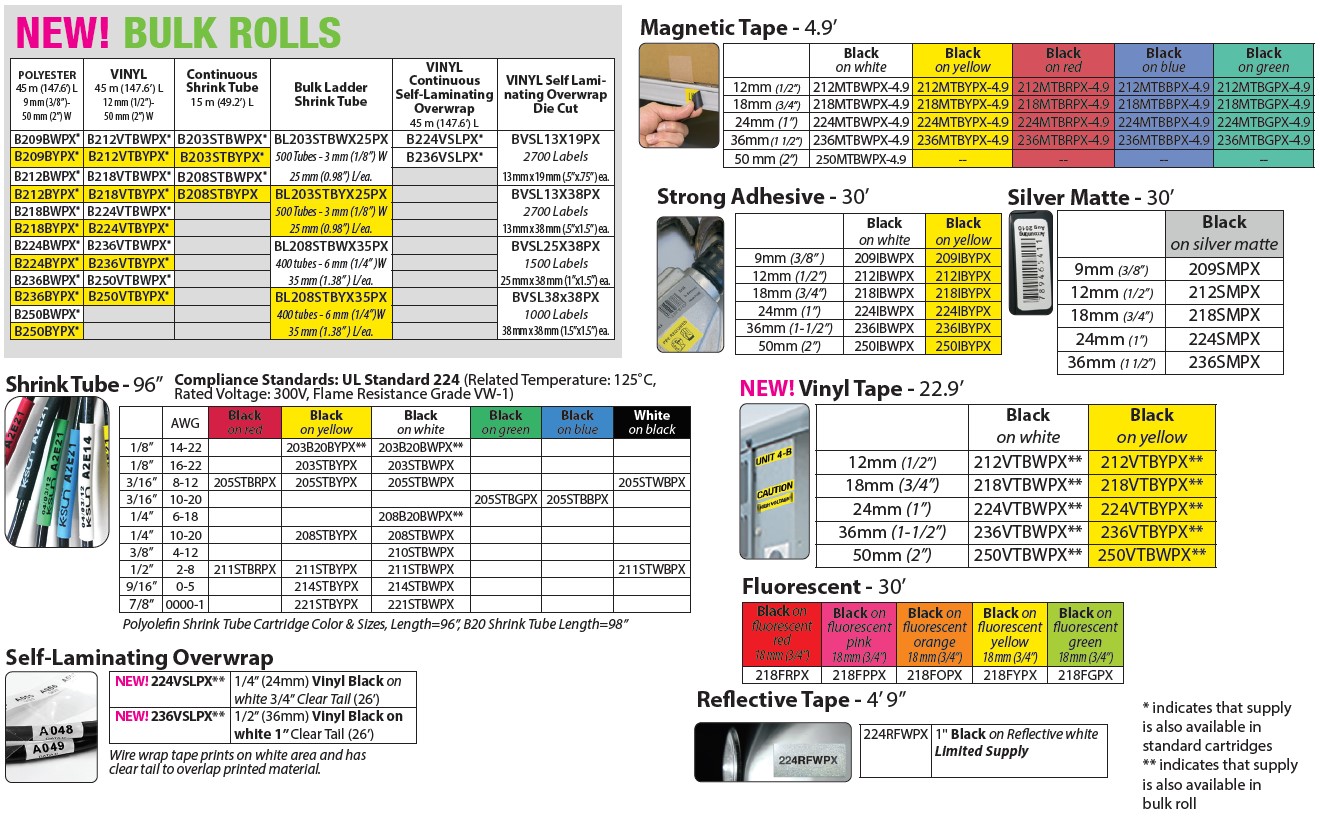

Tape Information
2023.07.31_LW-Z5010PX_tapes_pg1
2023.07.31_LW-Z5010PX_tapes_pg2
